     柄鑽頭

TAPER SHANK DRILLS









































Material: HSS高速鋼      Diameter 8.0mm~50.0mm  , 1/2" ~ 2"

  鋼骨用斜柄鑽頭



MORSE taper shank, black surface treated. This drill is applied for general use. Point angle 118; Split point 135. TiN Coating available upon request. The following is the chart of sizes we have in stock. Custom orders are welcome.

☉Suitable for below HRC 30 steel and cast iron
☉MT#1~MT#5 taper shank drills
 No stock for ordering production
☉適用於一般鋼材HRC30以下之鑄鐵、鋼材,建築用H型鋼。
☉柄部莫氏推拔MT#1~MT#5換柄配合鑽床導套使用。


DRILLS FOR IRON FRAMES





☉Special candle shape pointed profile designfor I-beam and H-beam drilling
☉Drilling with less burring
☉The web thinning makes the centering stable
☉Please make customized order for those different Morse taper no. Shank

 No stock for ordering production
☉蠟燭形先端角設計,對L形鋼、H形鋼、I形鋼之加工具有高效能,同時出口毛邊最少。
☉心厚研磨,求心性良好,效率高、壽命長、對難削材加工最適合。
備註:無現貨者訂貨生產、欲訂購HSS-CO材質或32.0以上要MT#3者,另行估價製作。

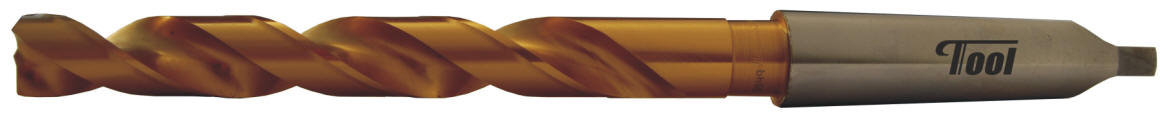

Material: HSS高速鋼, HSS+TiN高速鋼鍍鈦      Diameter 14.0mm~35.0mm
